Gearbox Rebuild Kit (A+)
GW-GBRKA+


  Gearboxes
  New Parts
     Kits
     Bearings
     Upgrades
     Gears
     Automatic
  Used Parts
  Tools
  Engines
  Automatics

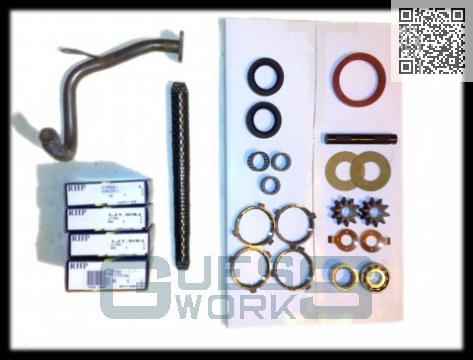

Everything you need to completely overhaul your Classic Mini or Metro A+ gearbox and differential.

Kit includes (part numbers provided as a guide)

  • 13H2934 x 1 - CLUTCH OIL SEAL (ORANGE)
  • 13H9513 x 2 - NEEDLE ROLLER 1ST MOTION/LAYSHAFT 4 SYNC
  • 22G2033 x 4 - BAULK RING
  • 22G2262 x 6 - SYNCHRO SPRING
  • 31B447 x 1 - SEAL UNDER ROD CHANGE SELECTORS TO GEAR CASE
  • AAU1365 x 1 - ROLLER DOUBLE FOR MAINSHAFT IN GEARBOX
  • AAU8424 x 1 - ROLLER 1st MOTION SHAFT PILOT TO CLUTCH CASE
  • ADU5738 x 2 - DIFF OUTPUT SHAFT OIL SEAL
  • ADU7619 x 1 - ROLLER SINGLE TYPE FOR HOLDING 1ST MOTION SHAFT
  • AHU1856 x 2 - DIFFERENTIAL ROLLER
  • AJM804B x 1 - GEARBOX GASKET SET
  • BLS107 x 6 - SYNCHRO BALLS
  • BTA101 x 2 - DIFFERENTIAL THRUST WASHER STANDARD SIZE
  • C-22A1739 x 1 - LAYSHAFT A PLUS performance
  • C-AHT54 x 1 - OIL PIPE HITECH CENTRAL PICKUP GEARBOX
  • C-BTA164 x 1 - DIFFERENTIAL PIN WITH MOLYBDENUM COATING
  • CCN110 x 1 - PILOT BEARING CIRCLIP
  • CDU1563 x 1 - O ring seal for aluminium bush selector shaft
  • CHM141 x 1 - LAYSHAFT LARGE ROLLER
  • DAM5071 x 2 - WASHER THRUST WITH LIP FOR PLANET GEAR,A PLUS
  • DAM6624 x 2 - PLANET GEAR
  • GHF221 x 1 - 1/4" UNF Nyloc nut
  • GHF223 x 1 - 3/8" UNF Nyloc nut
  • TUK100320 x 1 - BEARING ROLLER TYPE FOR A PLUS ONLY FITTED 1996 ON

£ 295.00
(£ 354.00)
